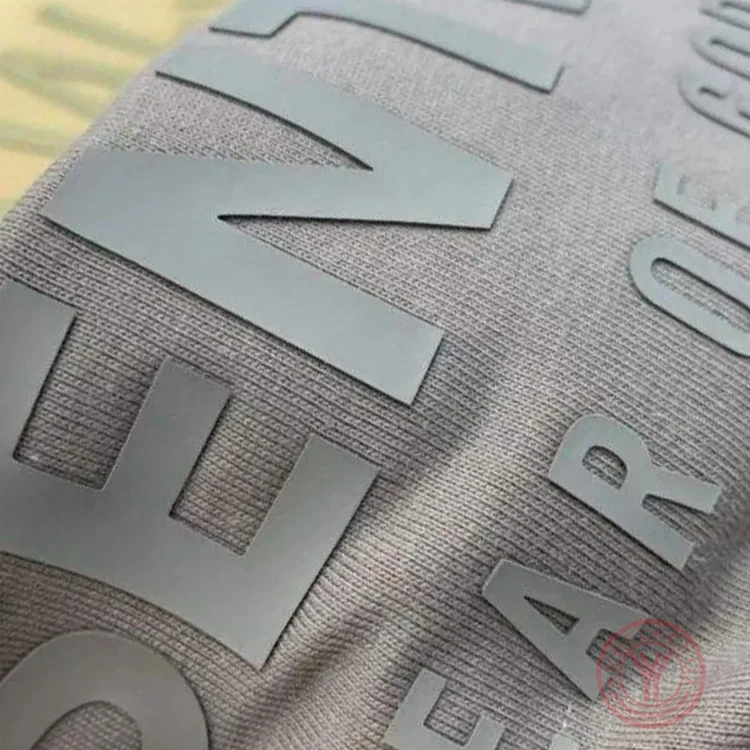

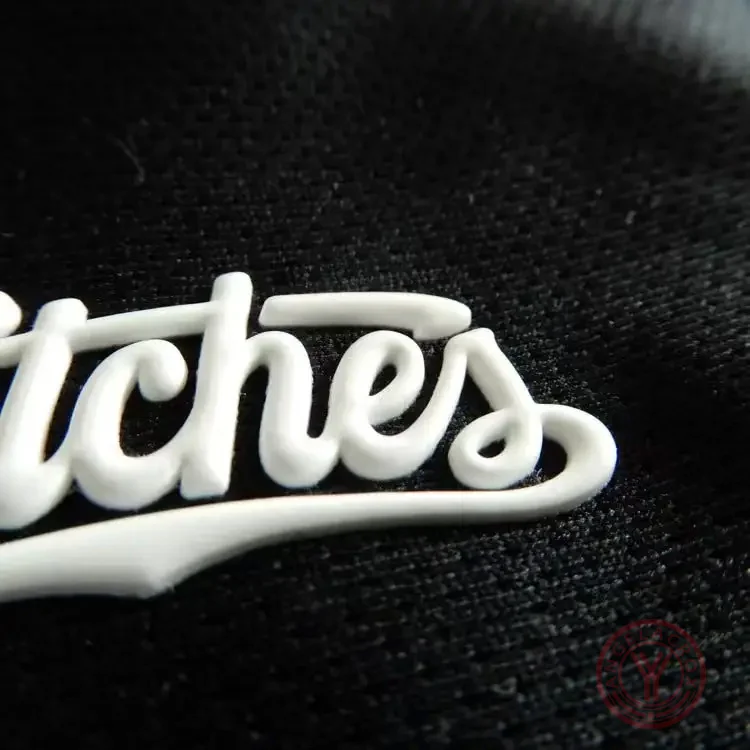

What Is 3D Silicone Heat Transfer Vinyl?
3D Silicone Heat Transfer Vinyl is a specialty transfer material made from silicone rather than PU or PVC, designed to create a raised, embossed 3D effect once pressed onto fabric. Unlike flat vinyl, it retains a soft, rubber-like texture that mimics traditional molded silicone patches, but without the higher tooling costs — making it practical for small-batch or custom orders on apparel, hats, bags, and shoes.
How Does It Work?
The vinyl is applied using a standard heat press with a cold peel method: press the front side for 8 seconds and the back side for 20 seconds at 135°C–160°C, using 3–5 kg of pressure, then peel the carrier film once cooled. This two-sided pressing process ensures the silicone fully bonds and cures without lifting or edge curling. No specialized machinery is required — any commercial or semi-commercial heat press can handle the job, which is one reason this material suits both large manufacturers and smaller print shops.
Specifications

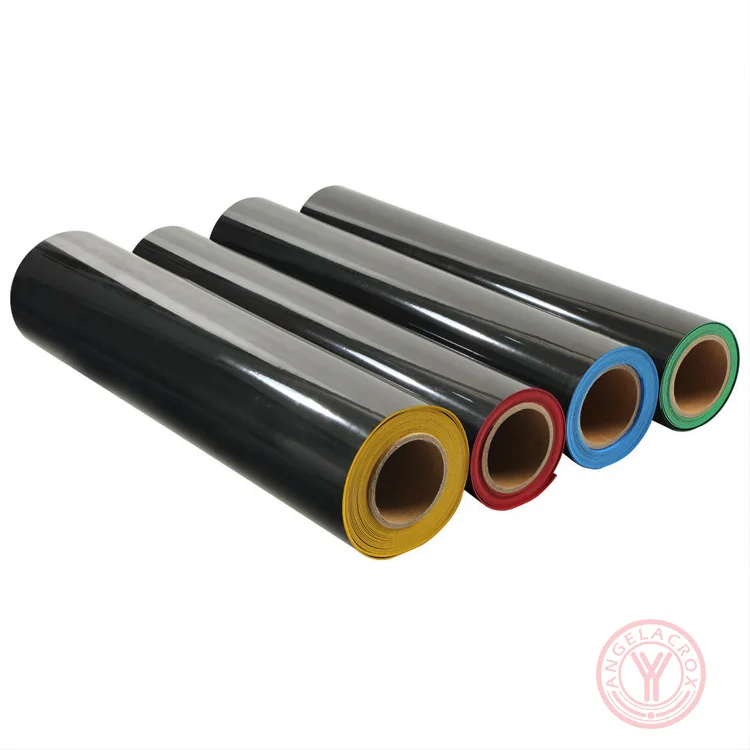

The material ships in rolls or sheets with thicknesses from 0.18mm up to 1.0mm, sized for different production volumes and design complexity.
| Material: | Silicone |
| Roll Size: |
60cm × 50m / Roll 60cm × 25m / Roll 50cm × 50m / Roll |
| Thickness: | 0.18mm - 1.0mm |

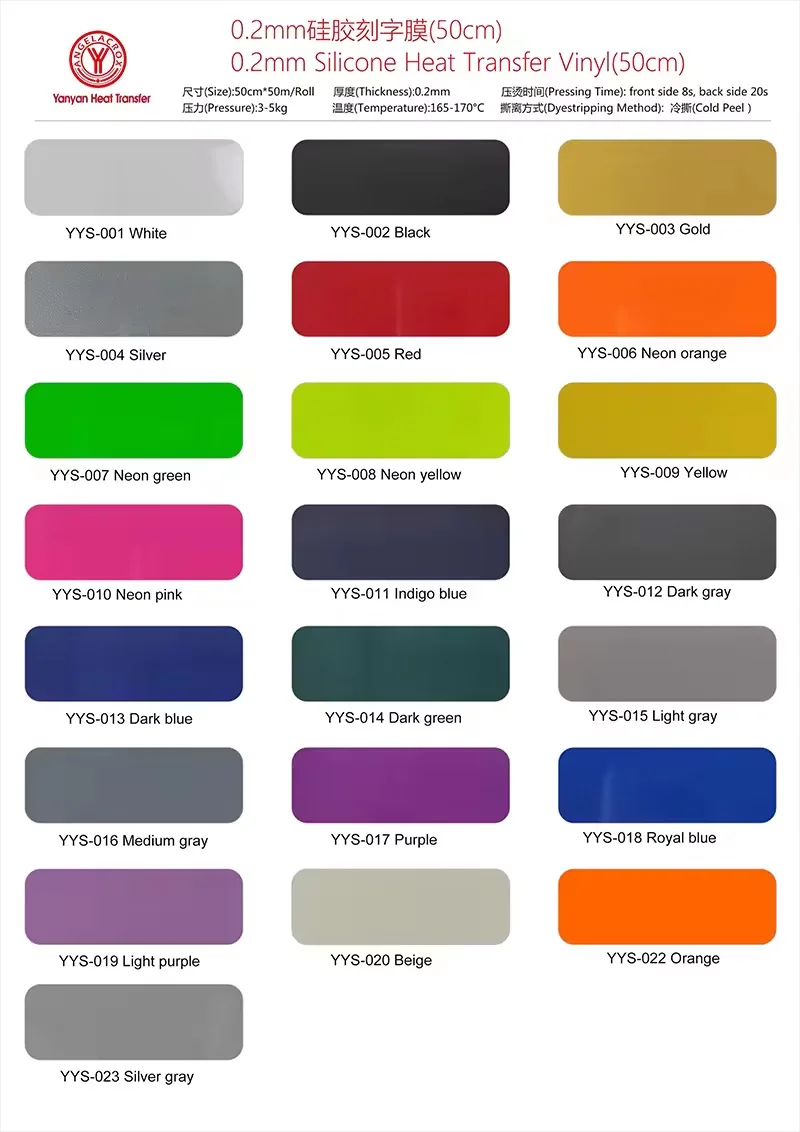

| Color: | Customization |
| Temperature: | 135℃ - 160℃ |
| Pressing Time: | Front side 8s, Back side 20s |
| Peeling Method: | Cold Peel |
| Pressure: | 3 - 5 kg |
Why Choose Silicone Over Other Heat Transfer Materials?
Silicone offers a soft, skin-friendly feel and durable wash resistance that flat vinyl or standard HTV can't replicate, while still allowing the fine 3D detailing typical of molded rubber patches. It flexes with fabric rather than cracking — testing shows no cracking after 50 home wash cycles — and holds its raised shape after repeated washing, making it a practical middle ground between basic printed transfers and expensive silicone molding.
Where Is It Commonly Used?
3D Silicone Heat Transfer Vinyl is widely used on T-shirts, hoodies, caps, bags, shoes, and promotional gifts where brands want a tactile, dimensional logo without committing to large-batch molded patches. Its compatibility with small and custom orders also makes it a common choice for startups, sports teams, and businesses testing new designs before scaling production.
Who Manufactures This Material?
This 3D Silicone Heat Transfer Vinyl is produced by YanYan, a manufacturer established in 2001 with over 20 years of dedicated experience in the heat transfer printing industry. The factory operates from a 3,000-square-meter facility with more than 200 employees, advanced production equipment, and a professional technical team, ensuring consistent quality across both small custom orders and large-scale production runs.
Our company holds multiple internationally recognized certifications — including BSCI, SMETA, SCAN, and ISO9001 — and maintains compliant export production qualifications, making it a verified supplier for buyers sourcing internationally.
Ready to Get Started?
Contact YanYan today for a free sample, custom color matching, or bulk pricing on 3D Silicone Heat Transfer Vinyl — backed by over 20 years of manufacturing experience and internationally certified quality standards — and see the raised, skin-friendly finish for yourself before you commit to a full order.
